Lotus300

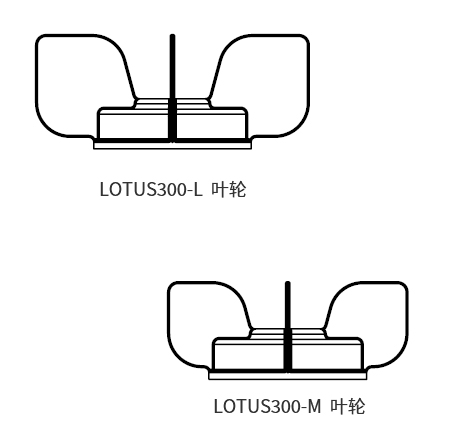

Lotus300-L impeller Argument
| Model number | Lotus300-L impeller |
| Handling capacity | 500-2000L |
| Maximum speed | 300rpm |
| Diameter | Φ160mm |
| Blade end speed | 2.51m/s |
| Operating temperature/pressure | -20-85℃ |
| Suitable medium density | 1.1mg/ml (With the increase of density, the processing capacity decreases correspondingly) |
| Suitable medium viscosity | 0-300CP (With the increase of viscosity, the processing capacity decreases correspondingly) |
| Material | HDPE/PEEK/ZrO² |
| Sterilize | Hot air + UV |
| Weight | ~623g |
| Packaging and size | Double vacuum film packing + carton size 200mm*200mm*100mm |
Lotus300-M impeller Argument
| Model number | Lotus300-M impeller |
| Handling capacity | 5-500L |
| Maximum speed | 350rpm |
| Diameter | Φ140mm |
| Blade end speed | 2.56m/s |
| Operating temperature/pressure | -20-85℃ |
| Suitable medium density | 1.1mg/ml (With the increase of density, the processing capacity decreases correspondingly) |
| Suitable medium viscosity | 0-300CP (With the increase of viscosity, the processing capacity decreases correspondingly) |
| Material | HDPE/PEEK/ZrO² |
| Sterilize | Hot air + UV |
| Weight | ~556g |
| Packaging and size | Double vacuum film packing + carton size 200mm*200mm*100mm |
